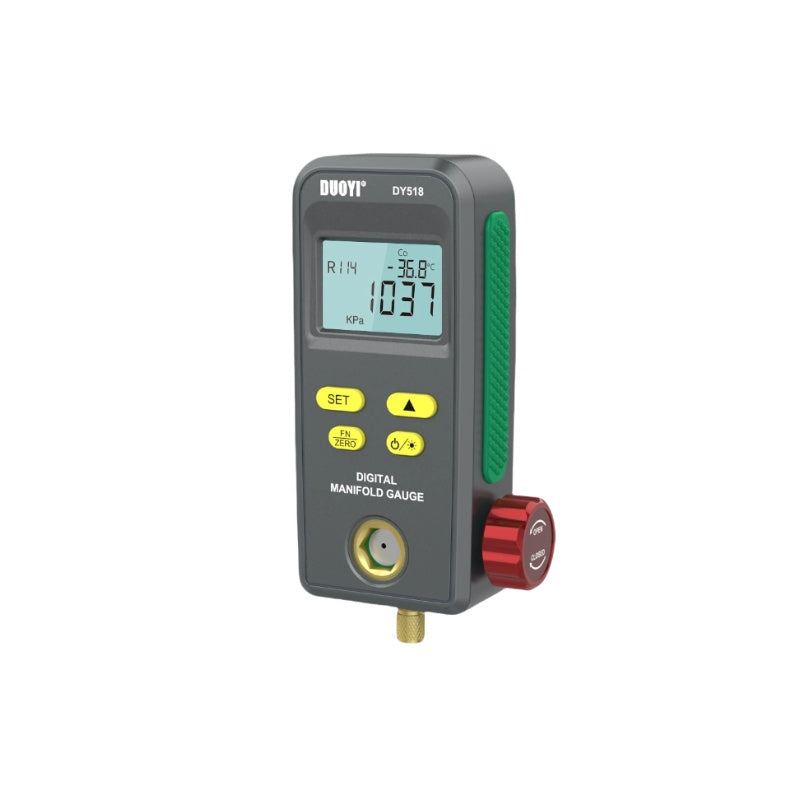

DUOYI DY518 Refrigeration Pressure Gauge Digital Manifold Best price supplier

DUOYI DY518 Refrigeration Pressure Gauge Digital Manifold Best price supplier

DUOYI  DY518 Digital Air Conditioner With Fluoride  For Car Air Conditioner Fluorine Filling Refrigeration Maintenance Pressure Gauge

Digital manifold supplier.


Product Description

It is an auxiliary tool for installing, testing and maintaining refrigeration equipment such as air conditioners and cold storage. It comes with three main functions with digital readouts and multi-block switching. The built-in 89 refrigeration database drives provide much more accurate readings.


1. High-strength engineering plastic and flexible non-slip silicone make the tool hard and easy to store.

2. Built-in 32-bit digital processing unit and high precision data acquisition and processing unit make the instrument efficient and stable.

3. Large size LCD display and backlight support testing reading clearly and working in the dark state.

4. Heavy duty valve switch and 1/4" inputs provide a durable and versatile tool.

5. Built-in 89 types of cooling base make it easy to check the condensing temperature and evaporating temperature.

6. Vacuum test and pressure leak test with leak time recording are ideal for users' needs for pressure testing and measurement during refrigerant filling process.

Application

1. Vacuum pressure detection.

2. Pressure leak detection.

3. Refrigerant vacuum gauge can be switched.

4. Pressure detection of refrigerant operating conditions.

Product Parameter

1. LCD display.

2. Power/Light Button: Power (Long press) /Backlight (short press)

3.Function/null button: Click on the ure Test Zero button (Long press)/Test function switch (short press)

4.Setting button: Parameter setting (Long press)/Tick test mode: start/stop (short press)

5. Arrow button: Reversing the refrigerant selection direction (long press)/Increase parameters (short press)

6. Refrigerant observation window.

7. Valve.

8. 1/4 in. pressure inlet.

9. Refrigerant Inlet/Inlet Vacuum Pump.


Product features

Pressure test: pressure gauge.

Pressure unit: kPa; MPa; Bar; inhg; PSI.

Pressure measuring range: 0kpa-6000kpa.

Pressure test resolution: 1kPa.

Pressure Test Accuracy: +/-0.5%(FS)+ 5dgt.

Pressure overload limit: 10000 kPa (10 MPa; 100 bar;).

Vacuum test: relative vacuum.

Vacuum test unit: kPa; MPa; Bar; inhg; PSI.

Vacuum test range: -101kpa-0kpa.

Vacuum test resolution: 1kPa.

Temperature unit: °C (Celsius), °F (Fahrenheit).

Temperature measuring range: -40°C-150°C (-40°F-302°F).

Temperature test resolution:

0.1°C (-40°C-99.9°C), 1°C (100°C-150°C).

0.1°F (-40°F-99.9°F), 1°F (100°F-302°F).

Temperature measurement accuracy: +/-0.5°C + 2dgt +/-0.9°F + 2dgt.

Built-in 89 types of NIST refrigerant: according to the American NIST standard.

Power supply: 4X1.5V (Size. Charger for Nickel-Cadmium or Nickel-Metal-LR6) Battery not included.


Refrigerator table, suitable for car air conditioning, home air conditioning, refrigerator, freezer, etc., mainly temperature and pressure measurement.

Packing List

1*DY518

1*Packing box

1*Carry bag

1*Instruction
